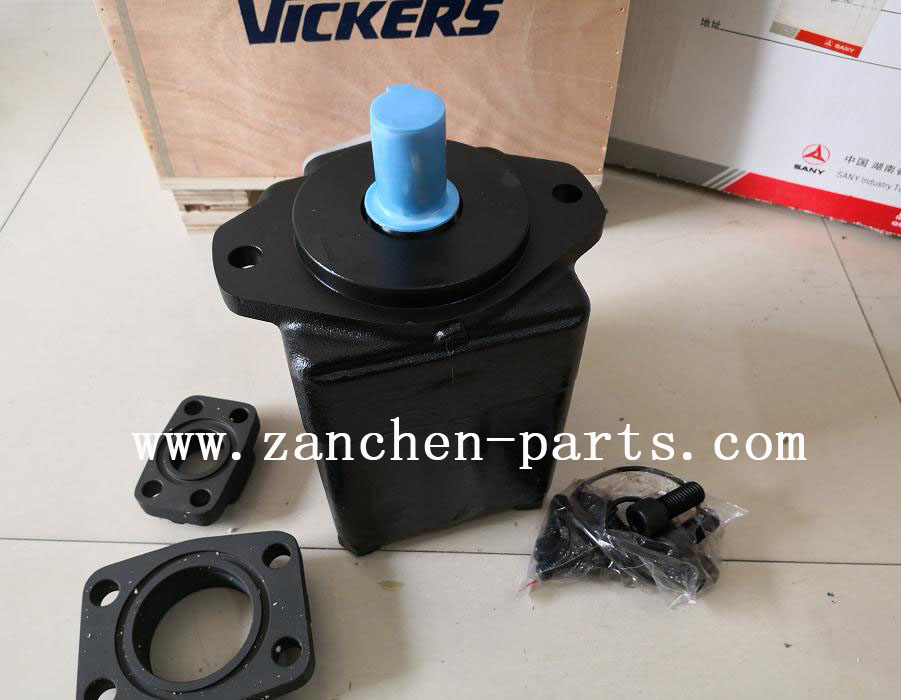

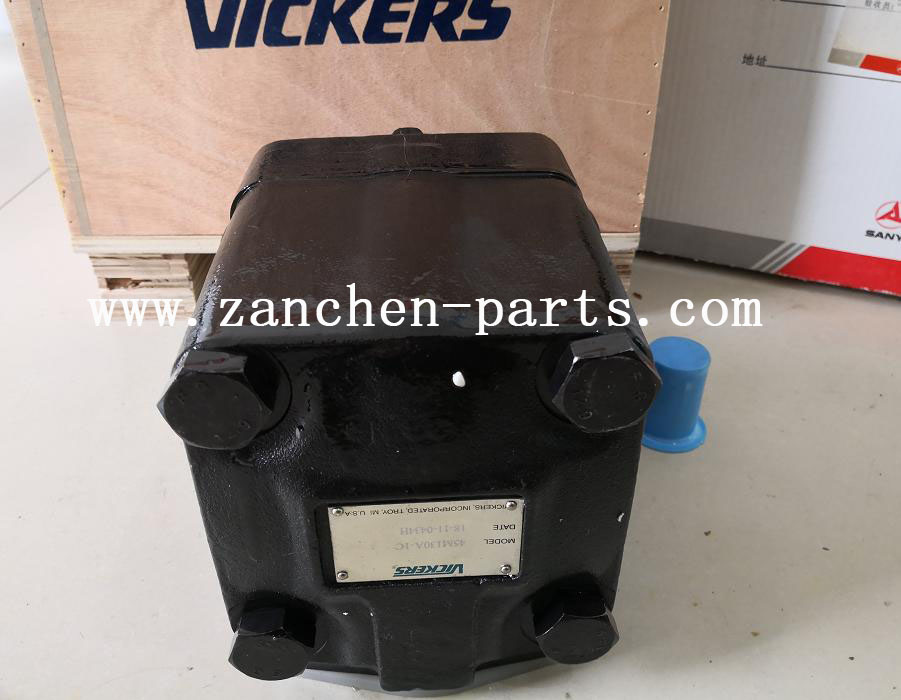

High-speed, high-pressure M Series of Eaton 25M,35M,45M,50M,26M,36M,46M,51M vane motors
High-speed, high-pressure Vickers M Series vane motors are field-proven to provide years of successful operation in elevator scraper drives, hydro static drives and many more auxiliary applications. They feature inlet/outlet ports that can be pressurized simultaneously while maintaining smooth operation.
Product Features
· Dual-pressure plate increases operational efficiency
· Diametrically opposed inlet and outlet chambers reduce wear
· Modular design permits greater serviceability
· Low inertia of rotating parts results in smooth operation
· Wide speed range with lower noise.
· The motor blade has a radial hydraulic balance, so it has high working pressure and long service life.
· Simple installation and easy to repair
Specifications:
Model | Geometric Displacement ml/r | Max Speed r/min | torque Nm/mpa | Speed | Weight |
Continuous | Instant |
25M | 40 | 43 | 15.5 | 17.5 | 7 | 100-2200 | 20 |
50 | 57 | 9.2 |
63 | 68 | 10.9 |
35M | 80 | 83 | 15.5 | 17.5 | 13.3 | 100-2200 | 31 |
100 | 100 | 16 |
125 | 122 | 19.4 |
45M | 140 | 138 | 15.5 | 17.5 | 22 | 100-2200 | 40 |
160 | 163 | 26 |
200 | 193 | 30.7 |
50M | 224 | 231 | 15.5 | 17.5 | 36.8 | 100-2200 | 74 |
250 | 268 | 42.7 |
315 | 317 | 50.5 |
